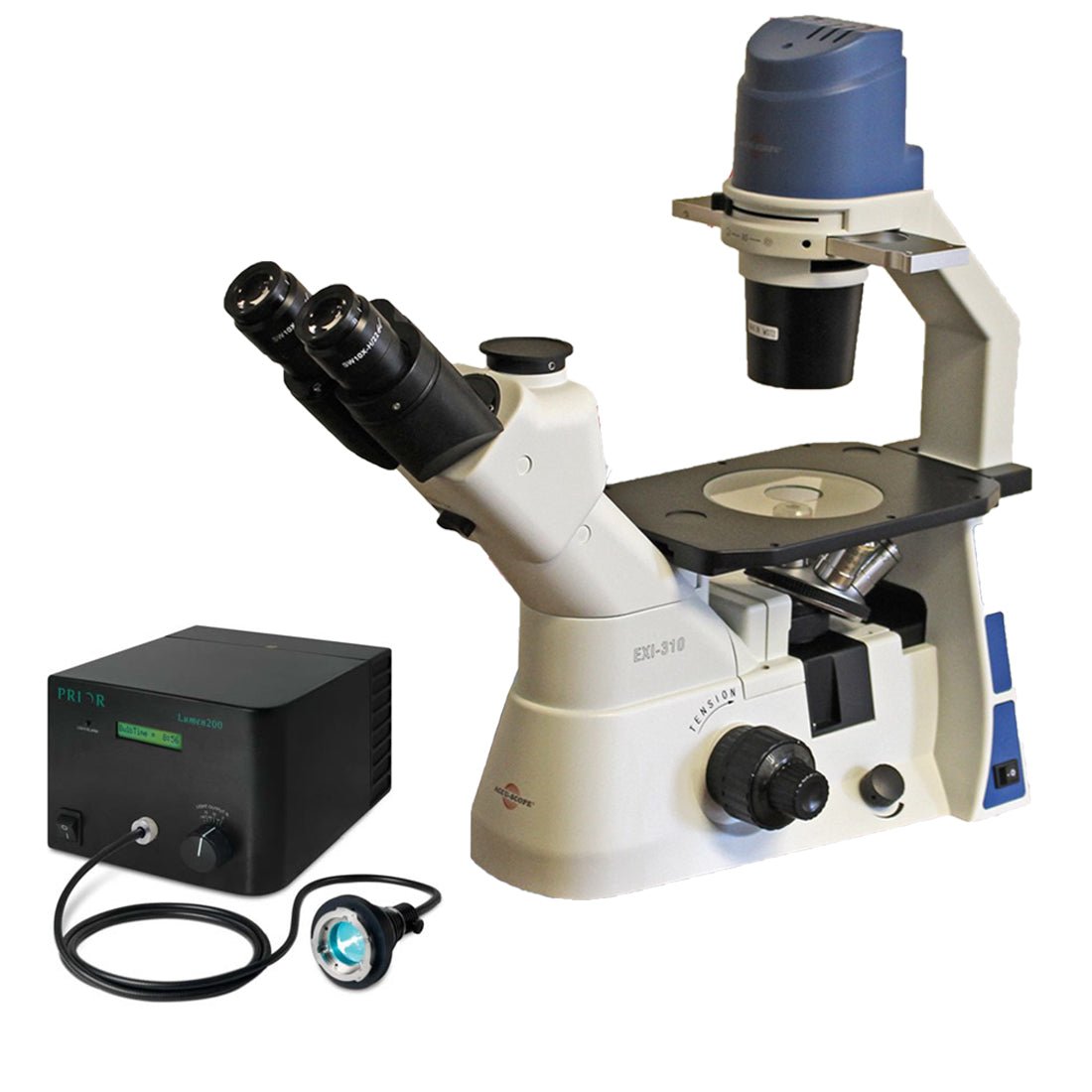

Inverted Fluorescence Microscope

Microscope Features

EWF10x focusing eyepieces with eyeguards, 22mm field of view
Siedentopf trinocular viewing head with photo tube; inclined 30°, rotatable 360°
48-75mm interpupillary distance settings
AIS Infinity Corrected 4X Plan (not phase),10X ,20X Plan phase and 20X and 40X Plan Fluor objectives
0/100 split to photoport or eyepieces
Fixed plain stage 160mm x 250mm with glass insert and mechanical stage with lower right control
ULWD condenser, N.A. 0.3, working distance 72mm
Variable LED Koehler 5 watt illumination; LED bulb rated for 25,000 hours
FITC / GFP and DAPI with LP emission filter sets included

Light Source Features

200w metal halide lamp with up to 1500 hour life
Self aligning lamp is easy to replace
Reduced heat transfer giving greater stability
Higher output than traditional light sources
Unsurpassed spectral output stability DC powered lamp
5 position manual light attenuator

3032 Series Manual (PDF 2.3MB)
Lead time 4-6 weeksFreight shipping charges will apply
